freesecs::async_reception_t Class Reference

Asyncronous read from a file descriptor The class implements async read from file descriptor using POSIX select. The read is done in a separate thread with the signal triggered when all the requested data comes. There's only one thread started per multiple async_reception_t instances, with refcount, to exit when the last async_reception_t gets destroyed. The new async_reception_t gets created, FDSET is updated and the thread is notified to call select against an updated FDSET. More...

#include <async_reception.h>

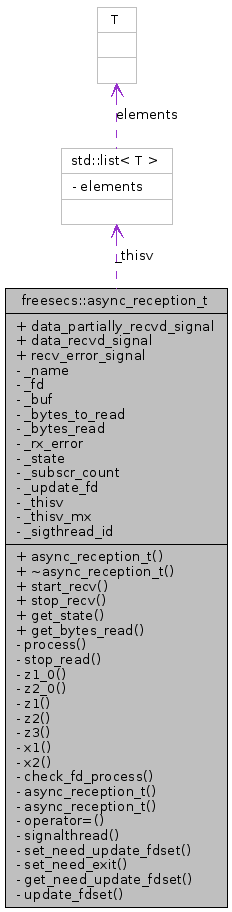

Collaboration diagram for freesecs::async_reception_t:

[legend]List of all members.


Public Types
enum	state_t { IDLE = 0, WTG_FOR_DATA, RECEIVED }
	data reception state define
Public Member Functions
	async_reception_t (int fd, const char *name)
	ctor
virtual	~async_reception_t ()
void	start_recv (void *buf, size_t count)
	Starts receiving data Having been specified the buffer location and number of bytes to read, async reader instance proceeds to WTG_FOR_DATA state until all the data comes as requested and then proceeds to RECEIVED state. When all data has been read, data_recvd_signal is triggered. When data is partially read, data_partially_recvd_signal is triggered. When reception error occurs (socket cnx has been closed or nothing else is to be read), recv_error_signal is triggered.
void	stop_recv ()
	Stops recieving data.
state_t	get_state ()
	Returns status of data recieving.
size_t	get_bytes_read ()
	Returns number of bytes received since last start_recv call.
Public Attributes
signal_one_arg_t< size_t >	data_partially_recvd_signal
	Signal for reception/read activity.
signal_one_arg_t< size_t >	data_recvd_signal
	Signal for data received as per start_recv request.
signal_one_arg_t< int >	recv_error_signal
	Signal for data reception/read error The reasons could be: tcp disconnect, EOF. The argiment of the signal is error code as per errno spec.
Classes
union	event_data_t
	Async SM event type declaration.

Detailed Description

Definition at line 43 of file async_reception.h.

Constructor & Destructor Documentation

freesecs::async_reception_t::async_reception_t	(	int	fd,
		const char *	name
	)

ctor

Parameters:

	fd	File descriptor to read from
	name	async reception instance name, used for logging

Definition at line 45 of file async_reception.cpp.

References async_reception_t().

Referenced by async_reception_t().

Here is the call graph for this function:

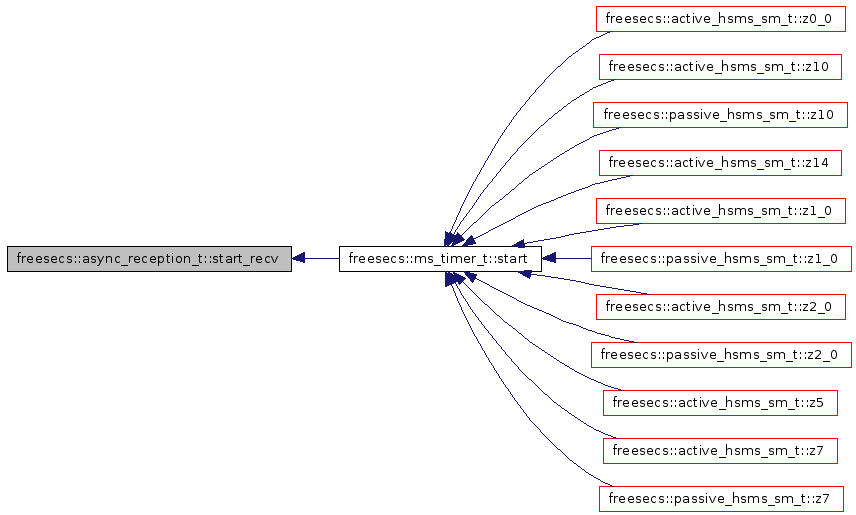

Here is the caller graph for this function:

Member Function Documentation

void freesecs::async_reception_t::start_recv	(	void *	buf,
		size_t	count
	)

Starts receiving data Having been specified the buffer location and number of bytes to read, async reader instance proceeds to WTG_FOR_DATA state until all the data comes as requested and then proceeds to RECEIVED state. When all data has been read, data_recvd_signal is triggered. When data is partially read, data_partially_recvd_signal is triggered. When reception error occurs (socket cnx has been closed or nothing else is to be read), recv_error_signal is triggered.

Parameters:
