freesecs::hsms_socket_t Class Reference

HSMS socket base class Implements tcp cnx link establishment, defines interface for descendant classes. More...

#include <hsms_socket.h>

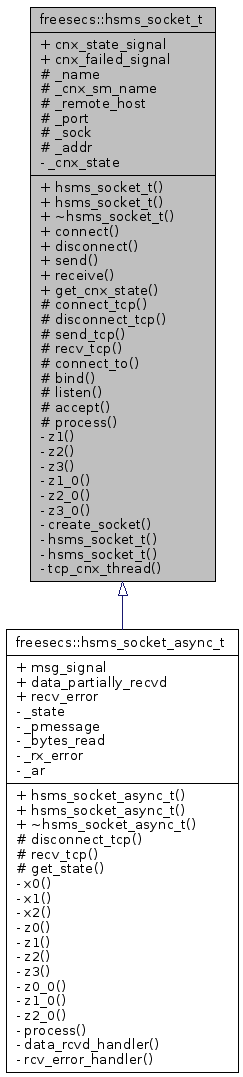

Inheritance diagram for freesecs::hsms_socket_t:

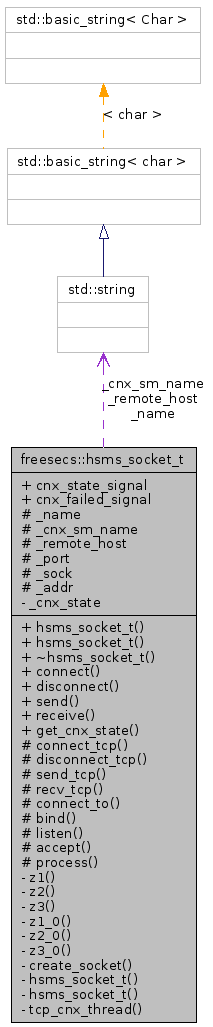

[legend]Collaboration diagram for freesecs::hsms_socket_t:

[legend]List of all members.

Public Types
enum	cnx_state_et { NOT_CONNECTED, CONNECTING, CONNECTED }
typedef std::vector< unsigned char >	data_t
typedef shared_ptr_t< data_t >	pdata_t
Public Member Functions
	hsms_socket_t (const char *name, const int port)
	Passive cnx socket ctor.
	hsms_socket_t (const char *name, const char *host, int port)
	Active cnx socket ctor.
virtual	~hsms_socket_t ()
int	connect ()
	Start tcp connect.
int	disconnect ()
	Disconnect tcp link.
int	send (pdata_t)
	Send data over tcp.
int	receive (pdata_t)
	reveive data from tcp connection
cnx_state_et	get_cnx_state () const
	returns tcp connection state
Public Attributes
signal_one_arg_t< cnx_state_et >	cnx_state_signal
	Connection state change signal.
signal_no_args_t	cnx_failed_signal
	Connection establishment failure signal.
Protected Types
enum	sock_cnx_ev_et {   e_connect, e_connect_failed, e_connected, e_disconnect,   e_send, e_recv }
	HSMS socket tcp cnx statemachine event types declaration.
Protected Member Functions
int	connect_tcp ()
	TCP connect procedure implementation.
virtual int	disconnect_tcp ()
	TCP disconnect procedure implementation.
int	send_tcp (pdata_t)
	Data sending over tcp implementation.
virtual int	recv_tcp (pdata_t)=0
	Iface to data receiving implementation.
int	connect_to ()
	Connects to remote site.
int	bind ()
	BSD bind call.
int	listen ()
	BSD listen call.
int	accept ()
	BSD accept call.
int	process (sock_cnx_ev_t)
	HSMS socket tcp cnx statemachine.
Protected Attributes
std::string	_name
std::string	_cnx_sm_name
std::string	_remote_host
int	_port
int	_sock
sockaddr_in	_addr
Classes
struct	sock_cnx_ev_t
	HSMS socket tcp cnx statemachine event declaration. More...

---

Detailed Description

HSMS socket base class Implements tcp cnx link establishment, defines interface for descendant classes.

Definition at line 45 of file hsms_socket.h.

---

The documentation for this class was generated from the following files:

• corelib/hsms_socket.h
• corelib/hsms_socket.cpp

---
