freesecs::hsms_cnx_t Class Reference

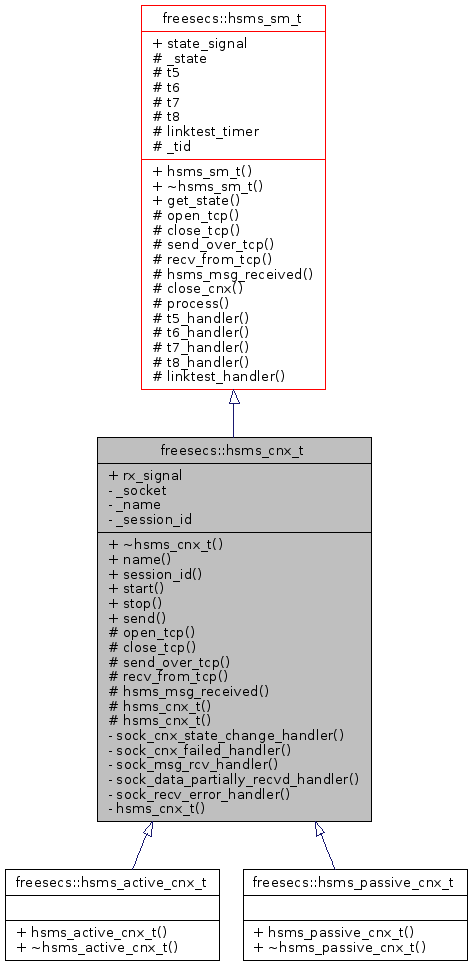

Inheritance diagram for freesecs::hsms_cnx_t:

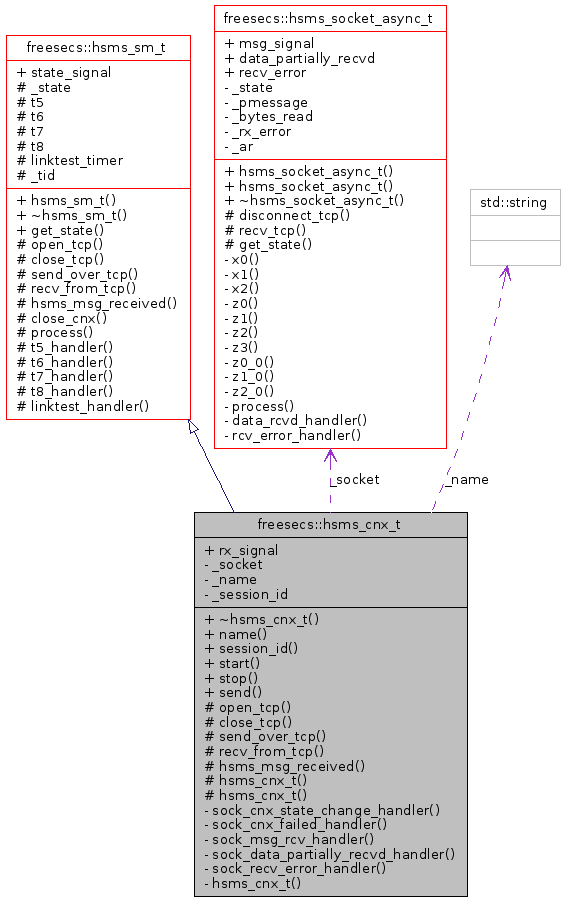

[legend]Collaboration diagram for freesecs::hsms_cnx_t:


Public Types
typedef hsms_socket_t::data_t	data_t
typedef hsms_socket_t::pdata_t	pdata_t
Public Member Functions
virtual	~hsms_cnx_t ()
const char *	name () const
uint16_t	session_id () const
int	start ()
int	stop ()
int	send (pdata_t)
Public Attributes
signal_one_arg_t< pdata_t >	rx_signal
	Signal for hsms data message received.
Protected Member Functions
virtual int	open_tcp ()
virtual int	close_tcp ()
virtual int	send_over_tcp (hsms_socket_t::pdata_t)
virtual int	recv_from_tcp (hsms_socket_t::pdata_t)
virtual void	hsms_msg_received (hsms_socket_t::pdata_t)
	hsms_cnx_t (const char name, uint16_t session_id, const char remote_ip, unsigned remote_port)
	hsms_cnx_t (const char *name, uint16_t session_id, unsigned local_port)

Detailed Description

Definition at line 41 of file hsms_cnx.h.

Constructor & Destructor Documentation

hsms_cnx_t::hsms_cnx_t	(	const char *	name,
		uint16_t	session_id,
		const char *	remote_ip,
		unsigned	remote_port
	)			`[protected]`

HSMS base cnx ctor for active HSMS cnx

Definition at line 31 of file hsms_cnx.cpp.

References freesecs::hsms_socket_t::cnx_failed_signal, freesecs::hsms_socket_t::cnx_state_signal, freesecs::hsms_socket_async_t::data_partially_recvd, freesecs::hsms_socket_async_t::msg_signal, and freesecs::hsms_socket_async_t::recv_error.

hsms_cnx_t::hsms_cnx_t	(	const char *	name,
		uint16_t	session_id,
		unsigned	local_port
	)			`[protected]`

HSMS base cnx ctor for passive HSMS cnx

Definition at line 47 of file hsms_cnx.cpp.

Member Function Documentation

int freesecs::hsms_cnx_t::start ( )

Starts hsms connection

Definition at line 79 of file hsms_cnx.cpp.

References freesecs::hsms_socket_t::connect().

Here is the call graph for this function:

int hsms_cnx_t::stop ( )

Stops hsms connection

Definition at line 86 of file hsms_cnx.cpp.

References freesecs::TRACE_DEBUG().

Here is the call graph for this function:

int hsms_cnx_t::send ( pdata_t )

Sends data over hsms connection

Definition at line 95 of file hsms_cnx.cpp.

References freesecs::simple_event_pump_t< T >::process_event(), and freesecs::data_msg< data_t >::set_session_id().

Here is the call graph for this function:

int hsms_cnx_t::open_tcp ( ) [protected, virtual]

Opens tcp connection using hsms async socket instance. This method is called from within HSMS SM implementation (either active or passive)

Implements freesecs::hsms_sm_t.

Definition at line 171 of file hsms_cnx.cpp.

References freesecs::hsms_socket_t::connect().

Here is the call graph for this function:

int hsms_cnx_t::close_tcp ( ) [protected, virtual]

Closes tcp connection using hsms async socket instance. This method is called from within HSMS SM implementation (either active or passive)

Implements freesecs::hsms_sm_t.

Definition at line 177 of file hsms_cnx.cpp.

References freesecs::hsms_socket_t::disconnect().

Here is the call graph for this function:

int hsms_cnx_t::send_over_tcp ( hsms_socket_t::pdata_t ) [protected, virtual]

Sends data over tcp connection using hsms async socket instance. This method is called from within HSMS SM implementation (either active or passive)

Definition at line 183 of file hsms_cnx.cpp.

References freesecs::hsms_socket_t::send().

Here is the call graph for this function:

int hsms_cnx_t::recv_from_tcp ( hsms_socket_t::pdata_t ) [protected, virtual]

Starts asincronously receiving data from tcp connection using hsms async socket instance. This method is called from within HSMS SM implementation (either active or passive)

Definition at line 189 of file hsms_cnx.cpp.

References freesecs::hsms_socket_t::receive().

Here is the call graph for this function:
