freesecs::hsms_sm_t Class Reference

HSMS SM base class. Inherits from event_pump_t for thread-safe event handling. Defines HSMS SM datatypes and signals. Defines abstract interface to open/close tcp cnx and to send data/recv over tcp. NOTE: T9 timeout is not managed with FREESECS HSMS module. More...

#include <hsms_statemachine.h>

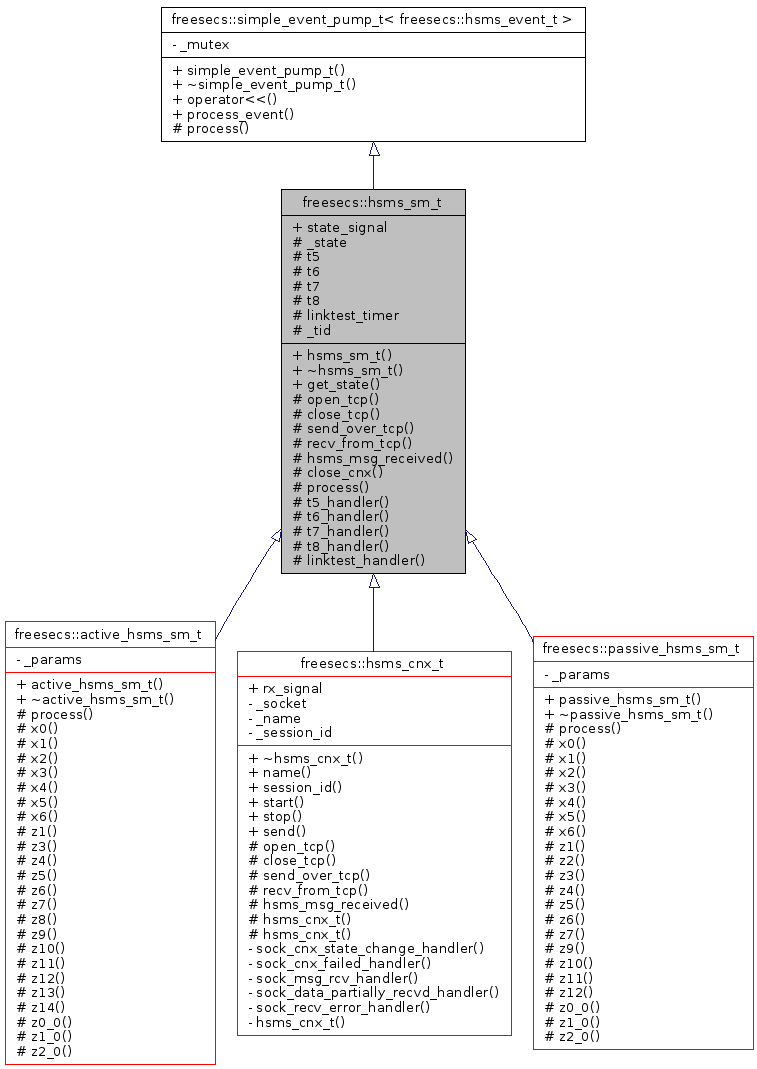

Inheritance diagram for freesecs::hsms_sm_t:

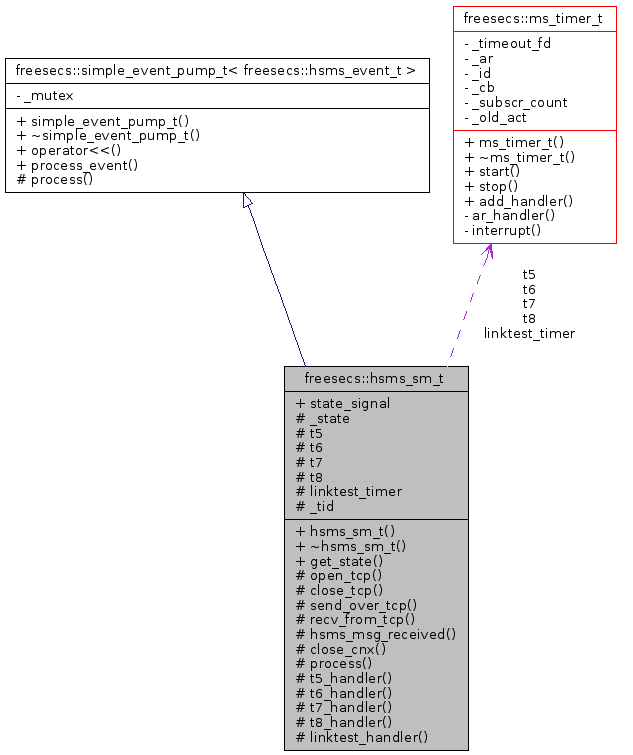

[legend]Collaboration diagram for freesecs::hsms_sm_t:

[legend]List of all members.

Public Types
typedef hsms_socket_t::data_t	data_t
typedef hsms_socket_t::pdata_t	pdata_t
Public Member Functions
	hsms_sm_t ()
virtual	~hsms_sm_t ()
hsms_state_et	get_state () const
	HSMS SM state getter.
Public Attributes
signal_one_arg_t< hsms_state_et >	state_signal
	HSMS SM state change signal.
Protected Member Functions
virtual int	open_tcp ()=0
	Abstract interface to open tcp cnx.
virtual int	close_tcp ()=0
	Abstract interface to close tcp cnx.
virtual int	send_over_tcp (pdata_t)=0
	Abstract interface to send data over tcp cnx.
virtual int	recv_from_tcp (pdata_t)=0
	Abstract interface to reveive data over tcp cnx.
virtual void	hsms_msg_received (pdata_t)=0
	Abstract interface to handle hsms msg received.
void	close_cnx ()
	Closes tcp cnx and stops all timers associated with HSMS SM.
virtual int	process (const hsms_event_t &)=0
	Abstract interface to HSMS SM implementation.
int	t5_handler ()
int	t6_handler ()
int	t7_handler ()
int	t8_handler ()
int	linktest_handler ()
Protected Attributes
hsms_state_et	_state
ms_timer_t	t5
ms_timer_t	t6
ms_timer_t	t7
ms_timer_t	t8
ms_timer_t	linktest_timer
unsigned short	_tid
	Transaction ID Incrementally changed transaction counter. There's common counter for both control transactions and data transactions.

---

Detailed Description

HSMS SM base class. Inherits from event_pump_t for thread-safe event handling. Defines HSMS SM datatypes and signals. Defines abstract interface to open/close tcp cnx and to send data/recv over tcp. NOTE: T9 timeout is not managed with FREESECS HSMS module.

Definition at line 114 of file hsms_statemachine.h.

---

Member Function Documentation

virtual int freesecs::hsms_sm_t::open_tcp

(

)

[protected, pure virtual]

Abstract interface to open tcp cnx.

See also:

hsms_cnx_t

Implemented in freesecs::hsms_cnx_t.

Referenced by freesecs::passive_hsms_sm_t::z0_0(), and freesecs::active_hsms_sm_t::z8().

Here is the caller graph for this function:

virtual int freesecs::hsms_sm_t::close_tcp

(

)

[protected, pure virtual]

Abstract interface to close tcp cnx.

See also:

hsms_cnx_t

Implemented in freesecs::hsms_cnx_t.

Referenced by close_cnx().

Here is the caller graph for this function:

virtual int freesecs::hsms_sm_t::send_over_tcp

(

pdata_t

)

[protected, pure virtual]

Abstract interface to send data over tcp cnx.

See also:

hsms_cnx_t

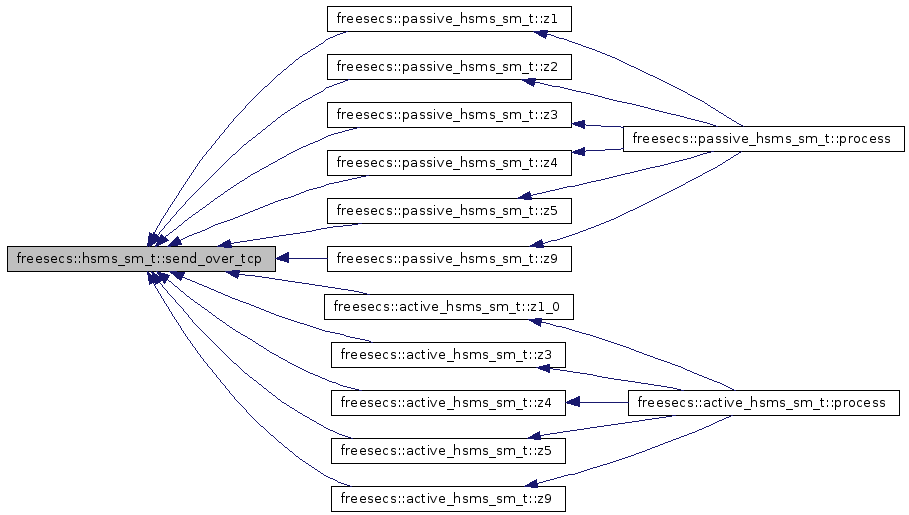

Referenced by freesecs::passive_hsms_sm_t::z1(), freesecs::active_hsms_sm_t::z1_0(), freesecs::passive_hsms_sm_t::z2(), freesecs::active_hsms_sm_t::z3(), freesecs::passive_hsms_sm_t::z3(), freesecs::active_hsms_sm_t::z4(), freesecs::passive_hsms_sm_t::z4(), freesecs::active_hsms_sm_t::z5(), freesecs::passive_hsms_sm_t::z5(), freesecs::active_hsms_sm_t::z9(), and freesecs::passive_hsms_sm_t::z9().

Here is the caller graph for this function:

virtual int freesecs::hsms_sm_t::recv_from_tcp

(

pdata_t

)

[protected, pure virtual]

Abstract interface to reveive data over tcp cnx.

See also:

hsms_cnx_t

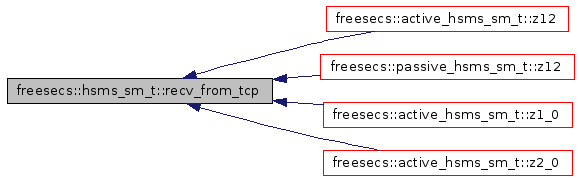

Referenced by freesecs::active_hsms_sm_t::z12(), freesecs::passive_hsms_sm_t::z12(), freesecs::active_hsms_sm_t::z1_0(), and freesecs::active_hsms_sm_t::z2_0().

Here is the caller graph for this function:

virtual void freesecs::hsms_sm_t::hsms_msg_received

(

pdata_t

)

[protected, pure virtual]

Abstract interface to handle hsms msg received.

See also:

hsms_cnx_t

Referenced by freesecs::active_hsms_sm_t::z6(), and freesecs::passive_hsms_sm_t::z6().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• corelib/hsms_statemachine.h
• corelib/hsms_statemachine.cpp

---
